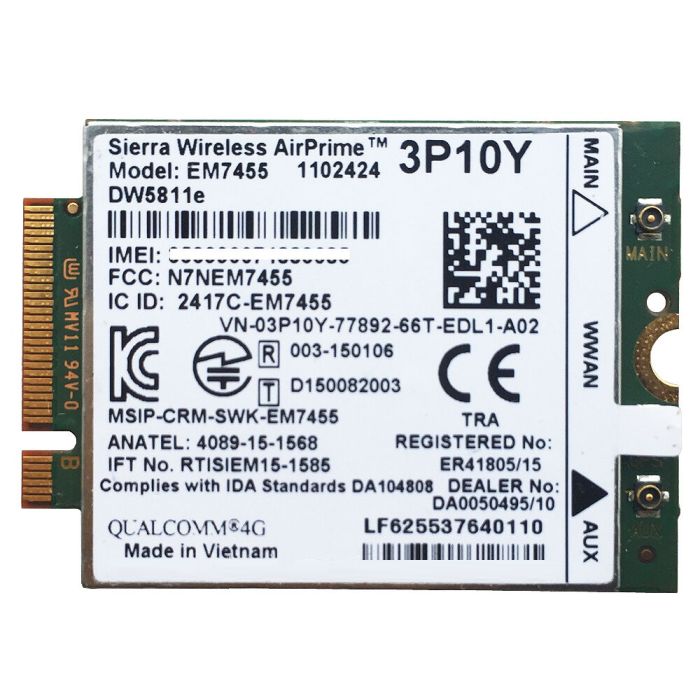

Sierra EM7455 Qualcomm 4G WWAN Card Module


‌Sierra EM7455 Qualcomm 4G WWAN Card Module

Availability: In stock
Only 4 left
Part #

‌Sierra EM7455 Qualcomm 4G WWAN Card Module

Reliable 4G LTE Cat-6 M2M connectivity with 3G fallback for the Americas and EMEA

The EM7455 module is part of the EM Series offering unprecedented LTE speeds, bandwidth, and network performance on the M.2 form factor commonly used in networking equipment.

This LTE-Advanced Cat-6 embedded module delivers up to 300 Mbps download speed and supports most 4G LTE bands in the market providing coverage for the Americas and EMEA on a single SKU. With automatic fallback to 3G networks and integrated GNSS receiver (GPS, GLONASS, Beidou, and Galileo satellite systems supported), the EM7455 is ideal for networking and telematics applications.

Coupled with the most operator certifications in the industry and network switching capability, EM7455 (EM7430 for APAC) allows customers to change their network provider anytime, providing more flexibility in manufacturing.

LTE Band Support ( North America / EMEA ) – B1 (2100 MHz), B2 (1900 MHz) ,B3 (1800 MHz), B4 (1700 MHz AWS), B5 (850 MHz),

B7 (2600 MHz), B8 (900 MHz), B12 (700 MHz – A block ,B13 (700 MHz – C block), B20 (800 MHz - DD) ,B25 (1900 MHz),B26 (850 MHz),

B29 (700 MHz – D block), B30 (2300 MHz), B41 (2500 MHz – TDD)

HSPA+ Band Support (Global) - B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz AWS), B5 (850 MHz), B8 (900 MHz)


Sierra Wireless Airprime EM7455 Technical Specifications:

* Category: 4G Module

* Manufacturer: Sierra Wireless

* Chipset: Qualcomm

* Form Factor: PCIe M.2

* Pins: 52-pin

* Frequency bands

- LTE FDD: Band B1-B5, B7, B12, B13, B17, B20, B25,B26, B29, B30, B41

- UMTS/HSPA+: B1, B2, B3, B4, B5, B8

* Technologies: UMTS,HSDPA,HSPA+,LTE

* Max Download Speed: 300 Mbps

* Max Upload Speed: 50 Mbps

* Temperature: -10 o C to 55 o C

* Certifications/Regulatory: Planned: FCC, IC, CE, NCC, GCF, PTCRB

* Carriers Approved: Planned: AT&T, Verizon, Sprint, Vodafone, Telefonica, Orange

* Connectors: Main, Aux/GNSS, GNSS

* Satellite Systems: GPS, Glonass, Beidou, Galileo

* Modes: Standalone, SUPL 2.0, XTRA 3.0

* Contrl Options: APIs, AT Commands

* Voltage: 1.8V

* Active Antenna Control: 4 pin

* Dynamic Power Control: 1 pin

* Interfaces: "USB 3.0, USB 2.0 High Speed"

* SIM interface: 2 x 1.8v or 3v

* Audio: PCM/I2S**

Other interfaces: Main Radio Disable, GNSS Disable, Flash LED Output, Wake on WAN, Reset

* Dimensions: 42 x 30 x 2.3 mm

Mixro SATA Cables PN # LTE-EM7455
More Information
Part # LTE-EM7455
Bar Code (UPC) 611851924652
