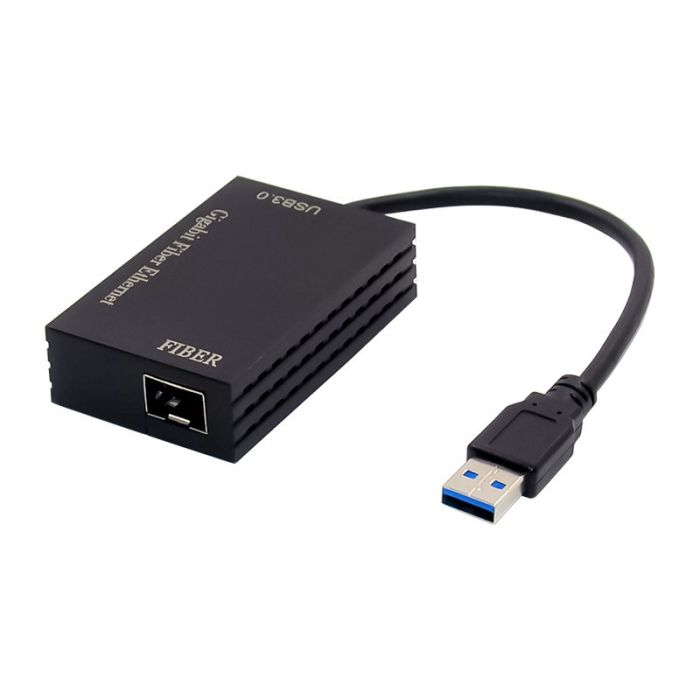

USB 3.0 to SFP Gigabit Fiber Ethernet Adapter

USB 3.0 Gigabit Fiber Ethernet Adapter

Descrition :

The USB 3.0 Gigabit SFP Fiber Network adapter used an controller RTL8153, Which is features USB3.0 to provide higher bandwidth and improved protocols for data exchange between the host and the device. USB3.0 also offers more advanced power management features for energy saving. The RTL8153 supports IEEE802.3az-2010, also known as Energy Efficient Ethernet (EEE), and it is fully compliant with Microsoft NDIS5, NDIS6(IPv4,IPv6,TCP,UDP)checksum features ,and supports IEEE802 IP layer 2 priority encoding and IEEE802.1Q Virtual bridged Local Area network(VLAN). It is suitable for desktop, workstation, server, communication platforms etc.

Features :

Hardware

• Integrated 10/100/1000M transceiver

• Auto-Negotiation with Next Page capability

• Supports USB 3.0, 2.0, and 1.1

• Supports CDC-ECM

• Supports LPM (Link Power Management)

• XTAL-Less Wake-On-LAN

• Supports power down/link down power saving

• Transmit/Receive on-chip buffer support

• EEPROM Interface

• Embedded OTP memory can replace external EEPROM

• Built-in switching regulator and LDO regulator

• Supports Customizable LEDs

• Supports hardware CRC (Cyclic Redundancy Check) function

Software Offload :

• Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation
• Task-offload (Large send v1and Large send v2) support
• Supports jumbo frame to 9K bytes

IEEE :

• Supports Full Duplex flow control (IEEE 802.3x)
• Fully compatible with IEEE 802.3 and IEEE 802.3u
• Supports IEEE 802.1P Layer 2 Priority Encoding
• Supports IEEE 802.1Q VLAN tagging
• Supports IEEE 802.3az-2010 (EEE)
