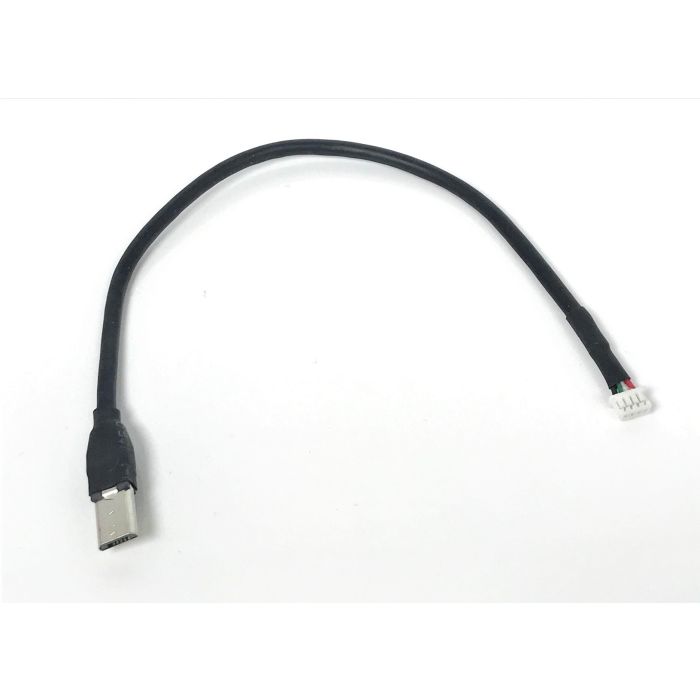

1.25 mm Connector 1X4 Pin to Low Profile Micro B USB Straight Connector Cable

‌Overview:

The 1.25 mm Connector 1X4 Pin to Low Profile Micro B USB Straight Connector Cable is designed for applications requiring a compact and efficient connection between a 1.25 mm 1x4 pin header and a low-profile Micro B USB connector. This cable is ideal for use in space-constrained environments, such as embedded systems, compact devices, and custom electronics projects. It facilitates reliable data transfer and power supply while maintaining a streamlined and space-saving profile.

Technical Specifications:

Type: Custom Cable with 1.25 mm 1X4 Pin Header to Micro B USB Connector

Cable Length: Typically 6 inches to 12 inches (varies by model)

Connectors:

Connector A: 1.25 mm 1X4 Pin Header (Male)

Connector B: Low Profile Micro B USB Straight Connector (Male)

Cable Gauge: 28 AWG (data) and 24 AWG (power)

Shielding: Shielded to reduce electromagnetic interference (EMI) and maintain signal integrity

Design:

Material: High-quality PVC insulation for durability and flexibility

Connector Build:

1.25 mm 1X4 Pin Header: Compact 4-pin male header for connection to a corresponding 1.25 mm header on a PCB or device

Low Profile Micro B USB Connector: Straight male connector with a low-profile design for space-efficient connections

Cable Construction: Flexible cable with precise pin alignment for reliable performance and easy installation

Insulation: Shielded to protect against signal degradation and interference

Performance:

Data Transfer Rate: Supports USB 2.0 data transfer rates up to 480 Mbps, ensuring efficient and reliable data transmission

Power Supply: Capable of handling standard USB power delivery, typically up to 500 mA (USB 2.0), suitable for powering most USB devices

Compatibility: Compatible with devices and systems using a 1.25 mm 1x4 pin header and Micro B USB port

Applications:

Embedded Systems: Provides a reliable connection in compact or custom electronics applications

Custom Devices: Ideal for connecting microcontroller boards, development kits, and other custom hardware with USB connectivity needs

Compact Enclosures: Suitable for use in enclosures where space is limited and a low-profile connector is required

Key Features:

1.25 mm 1X4 Pin Header: Provides a compact and secure connection for interfacing with a corresponding 1.25 mm header

Low Profile Micro B USB Connector: Space-efficient design for fitting into tight spaces while maintaining connectivity

High-Speed Performance: Supports USB 2.0 speeds up to 480 Mbps for fast data transfer

Durable Construction: Made with high-quality materials to ensure long-lasting performance and reliability

Flexible Cable: Provides ease of routing and installation in confined spaces

Usage Notes:

Connection: Ensure that the 1.25 mm 1X4 pin header is properly aligned and connected to the corresponding header on your PCB or device

Micro B USB Connector: Connect the low-profile Micro B USB connector to the USB port on your device or power source

Handling: Handle the cable and connectors with care to avoid bending or damaging the connectors and internal wiring

Compatibility Check: Verify that your device and connectors match the specifications of the cable for optimal performance

Additional Information:

Safety Precautions: Handle with care to prevent damage to the connectors and internal wiring

Connection Tips: Properly align and secure all connectors to ensure stable operation and avoid connectivity issues
